PVC Door & Window Profile Extrusion Line
Request A Quot


1. The line is designed for producing variety plastic profiles. It is mainly used to produce PVC door & window series profiles. Special size profile solution can be customized according to drawings provided by customers. Please confirm with us by sending dimensions, applications and photos to check whether we have applicable machines.
2. The line is developed by our company with introducing from foreign technology. It has the characteristics of high automation level, stable working performance, large output, high efficiency, reasonable structure and easy to use, etc.

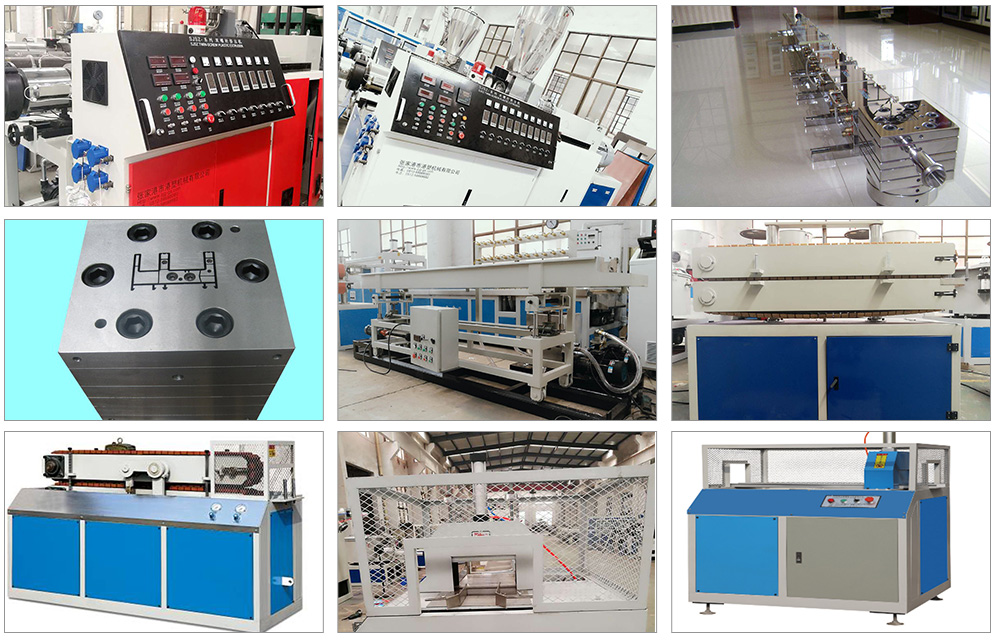

3. The line is composed of conical twin-screw extruder, vacuum stereotype table, hauling-off machine, cutter and stacker. Mould to be customized according to actual drawings provided by customers. Different conical twin-screw extruders can be selected according to different profile sections and dies.
4. PVC profile has a variety of colors, high strength, high toughness, impact resistance, can be widely used in windows and doors base profiles and decorative materials with great consumer demand in the world.

Layout:
Production Process Raw Material + Additive Preparation (Formula) → Mixing ( Mixer Unit) → Loading (Screw Loader) → Conical Twin-Screw Extruder → Customized Mould → Vacuum Stereotype Table → Hauling-off Machine + Lifting Cutter → Stacker → Finished product testing packaging

Model YF180 YF240 Other Profiles
Products Max. Width / mm 180 240 Customized
Screw Diameter /mm 51/105 65/132 Customized
Extruder Motor / kw 18.5 37 Customized
Screw Max. Speed /r.min 40 34.7 Customized
Central Height / mm 1000 1000 Customized
Capacity / kg.h 80-120 180-250 Customized
Hauling Speed / m.min 0-5 0-5 Customized
Hauling Height / mm 150 150 Customized
